Key Features:
· Material: Made of high-quality aluminium for durability and quick heat conduction.
· Electric Operation: Equipped with a powerful electric heating element for efficient steam generation.
· Capacity: Available in multiple sizes (5L, 10L, 15L, 20L, etc.) to suit different user needs.

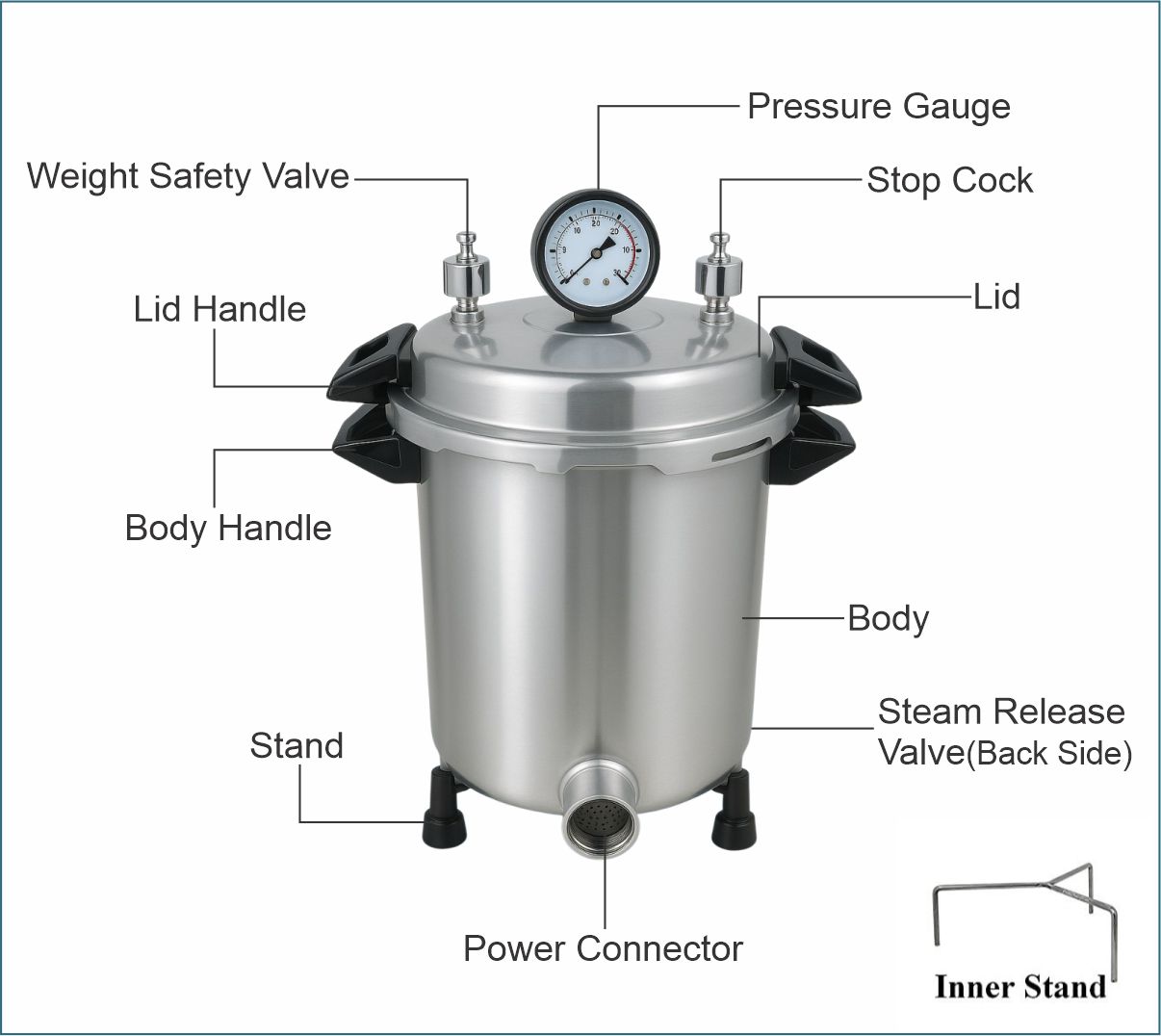

· Design: Pressure cooker-type lid with rubber gasket and strong Bakelite handles for safe and easy use.
· Pressure Gauge (Optional): For accurate pressure monitoring.
· Safety Valve: Built-in safety valve to prevent over-pressure.
· Automatic Pressure Control: Ensures consistent sterilization cycles.
· Energy Efficient: Low power consumption with effective heating.
Applications:
· Clinics and hospitals
· Nursing homes
· Dental and veterinary clinics
· Pathology and research laboratories
· Rural healthcare setups
· Tattoo parlours & salons
Sterilization Cycle:
· Operates at 121°C at 15 psi pressure
· Typical cycle time: 15–30 minutes depending on load
Power Supply:
· 220V AC, 50 Hz (customizable for other voltages)
Sizes:
| Code | Capacity (Litres) including Lid |
Dia x Height (mm) | Dia x Height (inch) |
| AU3100 | 11 | 220 x 280 | 9 x 11 |
| AU3200 | 15 | 300 x 225 | 12 x 9 |
| AU3300 | 21 | 300 x 300 | 12 x 12 |
| AU3400 | 24 | 300 x 350 | 12 x 14 |
| AU3500 | 28 | 300 x 400 | 12 x 16 |
| AU3600 | 38 | 350 x 400 | 14 x 16 |
| AU3700 | 39 | 300 x 550 | 12 x 22 |
*Autoclave sizes can be customized
